Direct Drive Pen / Rotary Jig for Ortur / Neje Laser Engraver

(4 customer reviews)

£45.00

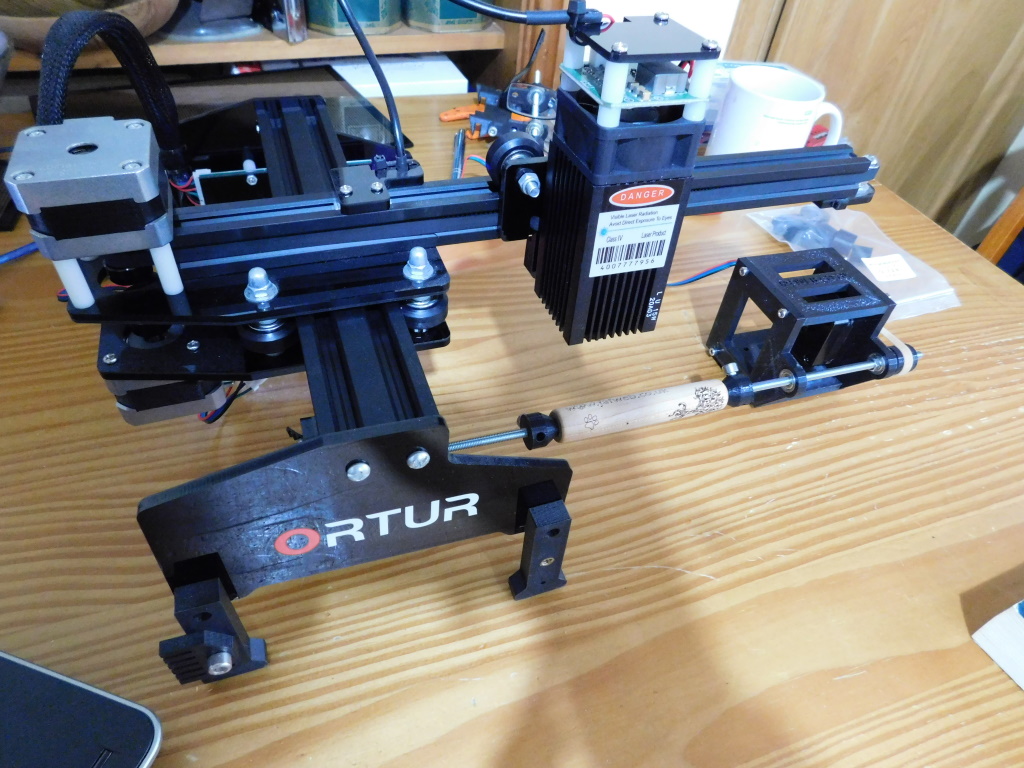

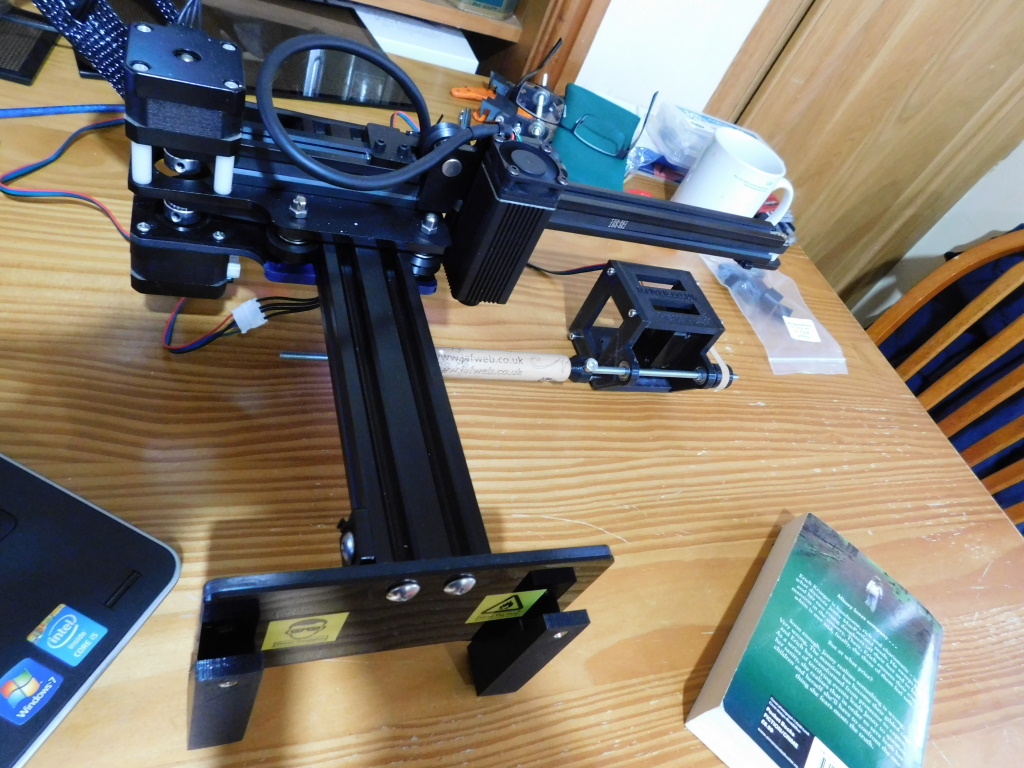

Direct Drive Pen / Rotary Jig for the Neje and Ortur laser engravers.

Can also supply this with a 16 tooth gear if your engraver isn’t an Ortur or a Neje. Get in touch if you need one of these.

SKU: N/A Categories: , ,

Description

Instructions here: Jafweb Direct Drive Pen Jig V1

A pen / rotary jig for the Neje and Ortur series of laser engravers.

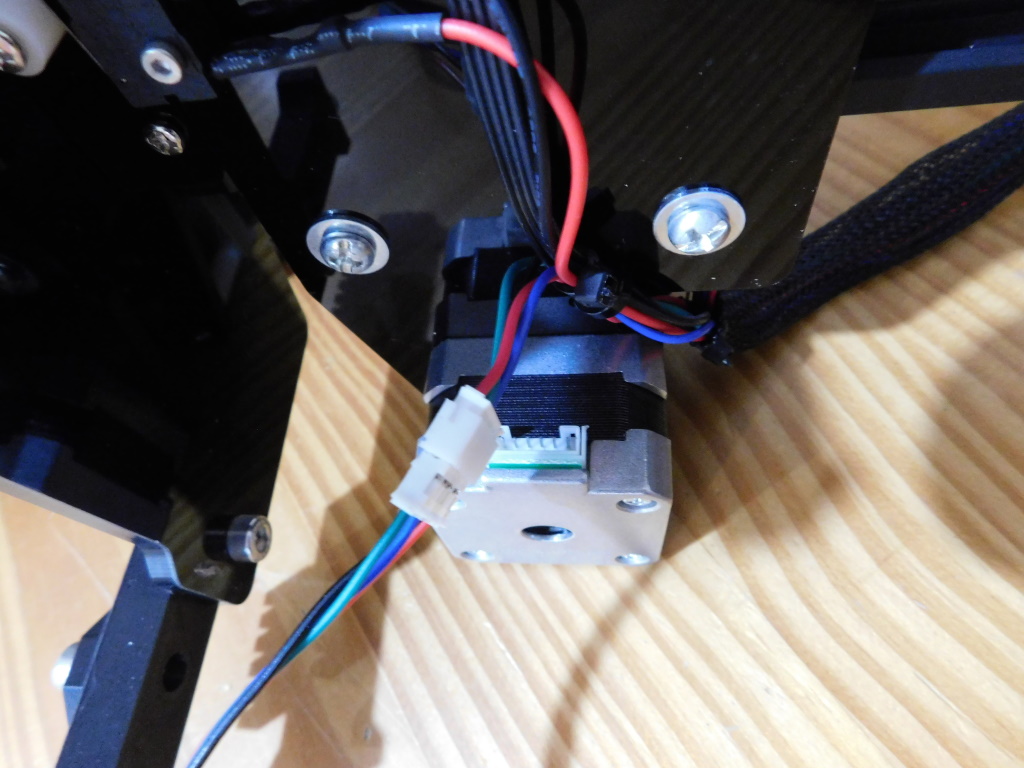

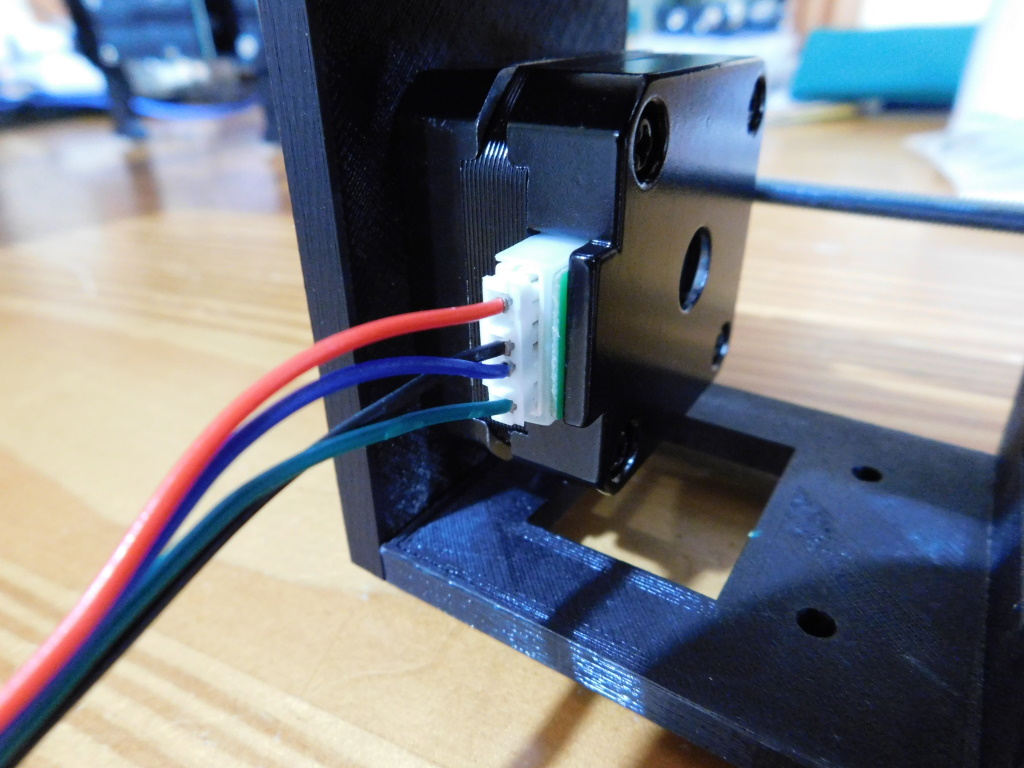

Unlike other pen jigs this is standalone and is simply connected to the ‘Y’ Axis stepper motor cable.

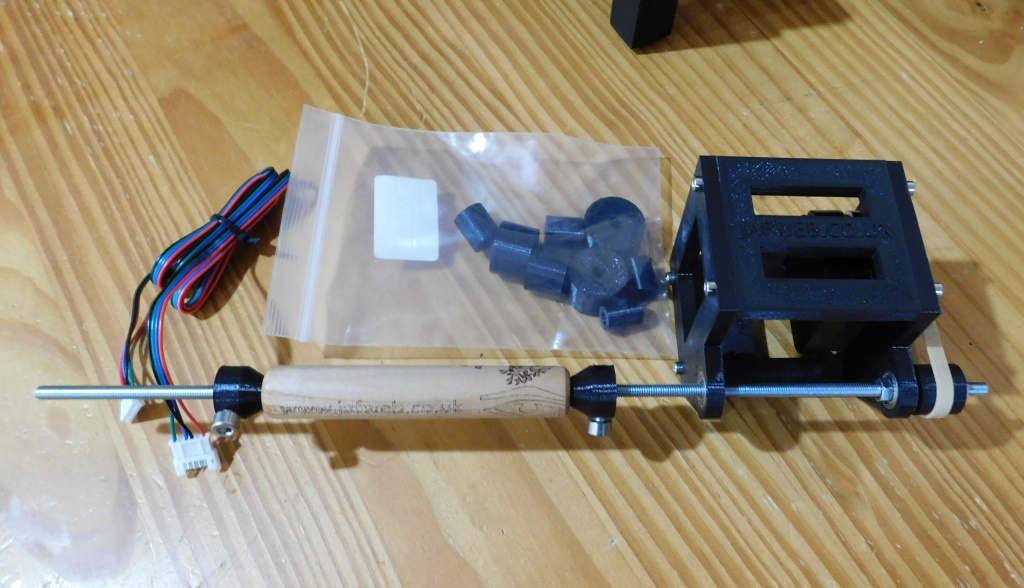

Kit contents:

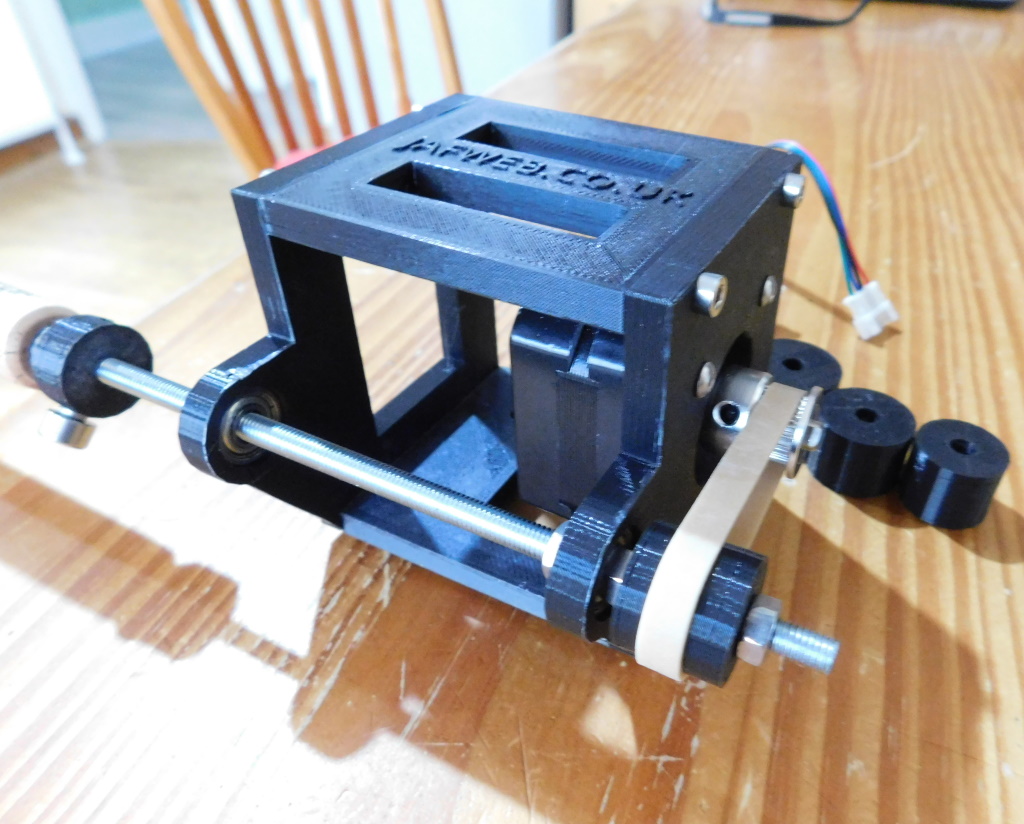

1 x Pre-Assembled Direct Drive Rotary

1 x 1 Metre Stepper Motor Extension Cable

1 x 330mm Axle

9 x Pulleys – 10, 12, 14, 16, 18, 20, 22, 24 and 26mm

2 x Quick Release Pen bushings – for mounting pens and other open ended items.

1 x Drive band

Additional information

Weight 0.5 kg
Dimensions 33 × 10 × 10 cm
Laser Model

A: Neje/Ortur/Aufero, B: Sculpfun/Yorahome/Atomstack, C: xTool, D: Other – Get in touch ;-)

4 reviews for Direct Drive Pen / Rotary Jig for Ortur / Neje Laser Engraver

  1. Jean Louis –

    Hello,
    Is this compatible with the neje master 2 max 40w 460×810?
    Thank you

    • James –

      I haven’t tested on this laser but I believe it should work OK – As long as you can access the ‘Y’ axis stepper motor cable to connect to the jig.
      Happy to get it working if it doesn’t – would be good to know either way:-)

  2. Jeff Jenkins –

    Would this work on the Neje Master 2 Mini?

    • James –

      Hi Jeff
      Yes it should work fine on the Neje 2 mini.
      Thanks for having a look.

  3. Rex Cover –

    Will this and the switch work on the Ortur Master Pro?

    • James –

      Hi Rex, Not officially tested but I don’t see why not. You’d need to connect the jig to one of the ‘Y’ axis motors and disconnect the other.
      The switch will work but again you’d have to disconnect the other ‘Y’ axis motor (I think). Also you may need longer cables on the switch.
      If you’re happy, send me some photos and measurement for the cables and we can come up with something suitable.
      Also happy to customise the switch box – perhaps with a couple of lugs and holes so it can be screwed down?
      James@jafweb.co.uk

      Thanks for having a look.

  4. Rex Cover –

    Your jig I like. I make pen and want to get it just for my pen making. I have the Ortur roller jig but like yours better. I am knew to all this but like learning. I’m 77 yrs young so I have a lot to learn with my laser. Is there a way to put the two motors together on the switch so I wouldn’t have to unhook it from the socket all the time. Just sayin…. lol I have to get in the book for the roller and see what cables you are talking about. Will get back with you. Thank you very much.
